OH Pumps

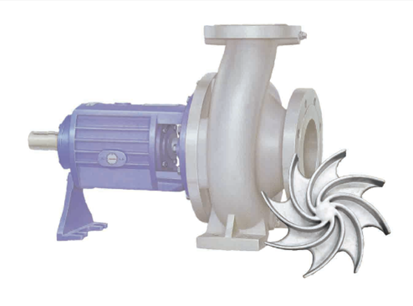

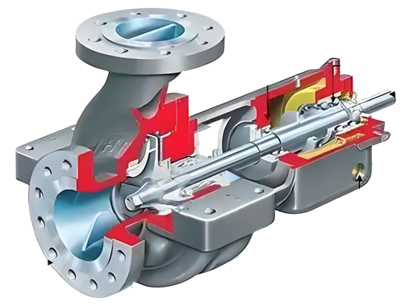

The OH series process pump is a horizontal, single-stage, end suction centrifugal pump. Its size and performance comply with DIN24256/ISO5199 standards. The OH series process pump is designed with reference to relevant design standards such as ASME/ANSI, B73.1M, and API610, combined with practical applications, and innovatively designed as a high reliability standard process pump.
| Standard size | DN32-300 mm |
| Flow | up to 2100 m3/h |
| Head | up to 150 m |
| Fluid temperature | -20 ℃-160 ℃ |
Recommended Products
BB1 Pump
The BB1 series pump is an axial split, single-stage or two-stage, volute shell type, two end supported horizontal centrifugal pump, which can also be designed as a vertical structure. Suitable for conveying various clean or trace particle containing, neutral or corrosive media. The BB1 series pump complies with the American Petroleum Institute API610 10th/API 610 11th design standards.
BB4 Pump
The BB4 series pump is a horizontal, single shell, multi-stage, first stage single suction or double suction centrifugal pump, suitable for the power industry, petrochemical processes, and transportation of clean water, high-temperature water, finished oil, liquefied petroleum gas, and other flammable, explosive, or toxic high-temperature and high-pressure liquids that do not contain solid particles. The BB4 series pump complies with the American Petroleum Institute's API 610 10th/API 610 11th design standards.
VS Pump
The VS series pump is a vertical single shell, flow channel multi-stage pump, and the first stage impeller can be a single suction or double suction structure, suitable for fields such as thermal power industry, petrochemical industry, sewage treatment, coal chemical industry, etc. The VS series pump complies with the American Petroleum Institute's API 610 10th/API 610 11th design standards
