BB3 Pump

Summary

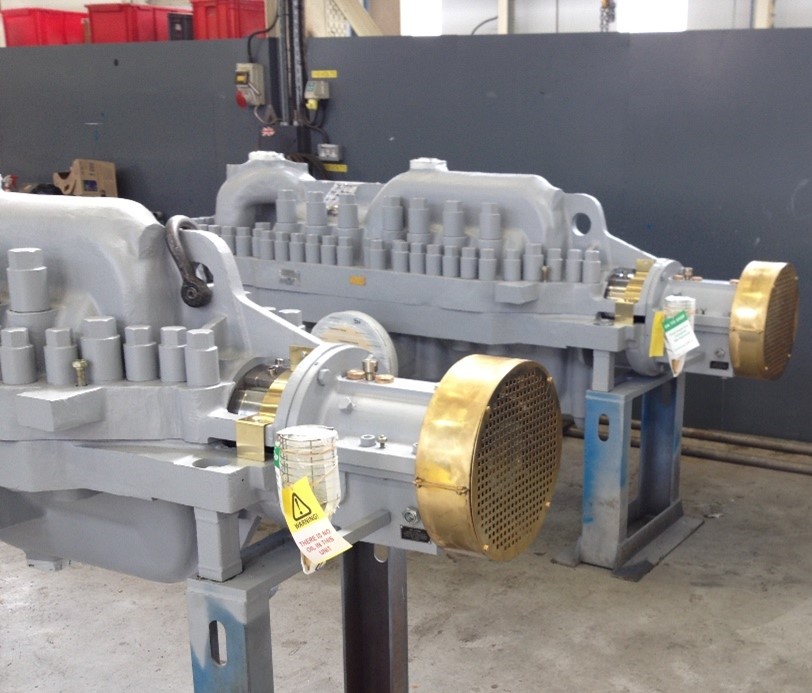

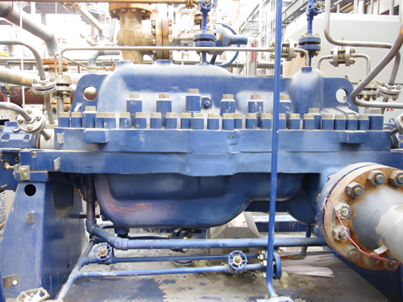

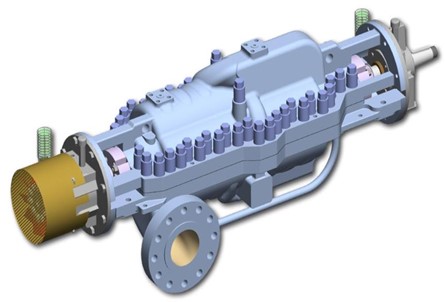

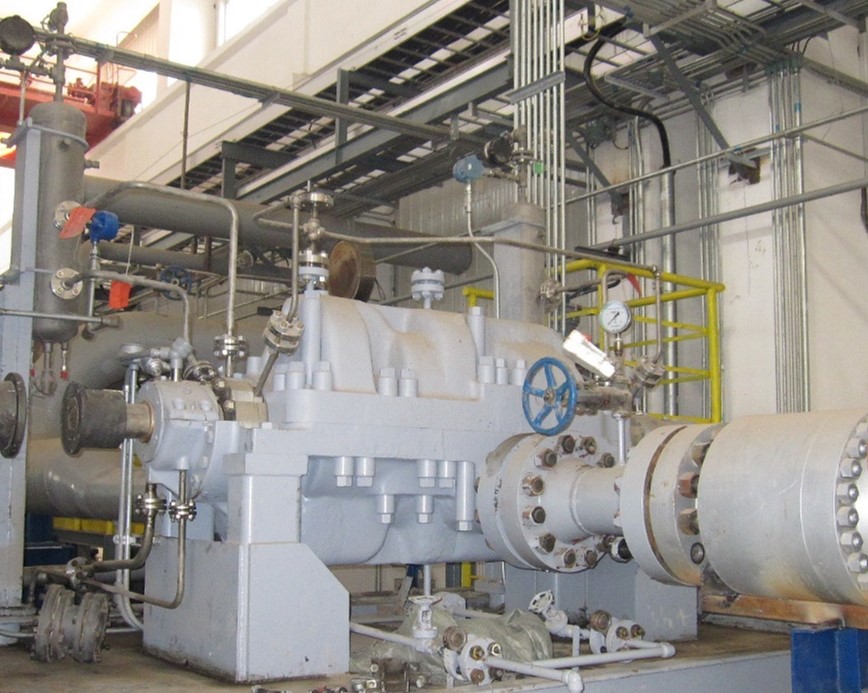

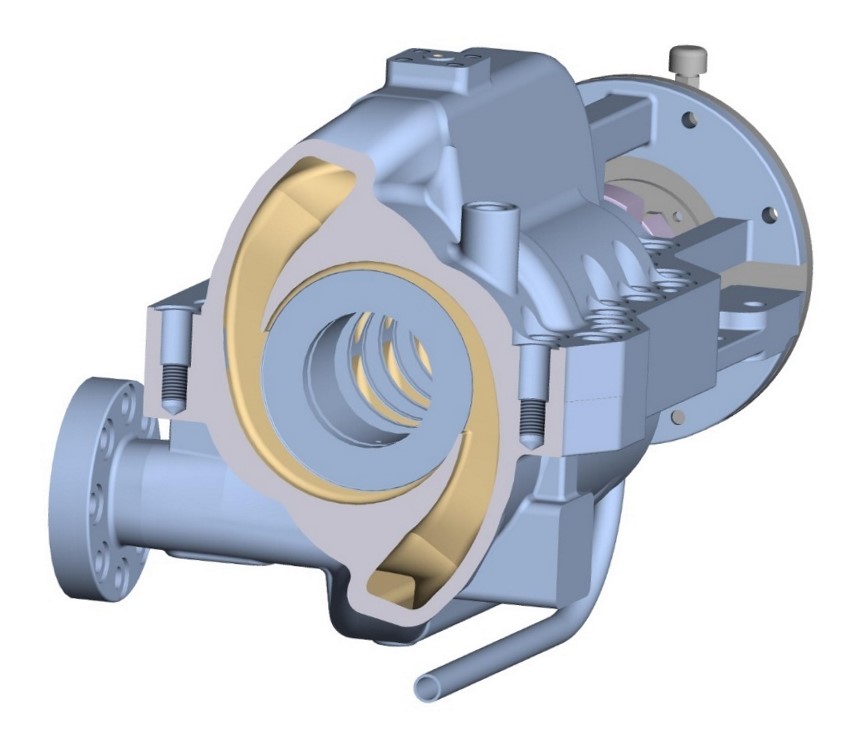

BB3 pump is an axial split, impeller symmetrical arrangement, volute type, horizontal, multi-stage, first stage single suction or double suction centrifugal pump, suitable for conveying various clean or medium containing trace particles, neutral or corrosive, and particularly stable when conveying medium containing solid particles. The BB3 series pump complies with the American Petroleum Institute API610 10th/API 610 11th design standards.

Pump Parameters
Standard sizeDN60-400 mm
Flow50-1600 m3/h
Head160-1000 m
Fluid temperature-80 ℃-160 ℃
Detail
Mainly used in chemical, coal chemical, pipeline transportation, offshore platforms, oil extraction, seawater desalination, power plants, etc. Typical working conditions are used for ash water pumps, lean methanol transfer pumps, lean and rich liquid pumps in fertilizer and synthetic ammonia plants, boiler feed pumps in power plants, oilfield water injection pumps, and pumps for offshore platforms in the coal chemical industry.
